LowPro 12/8 Trench Cover System
Lightweight, composite trench cover for pedestrians and 3528lb vehicles over a 28" excavation. Alternative to steel plates and plywood boards, not for use in the roadway.
System Components

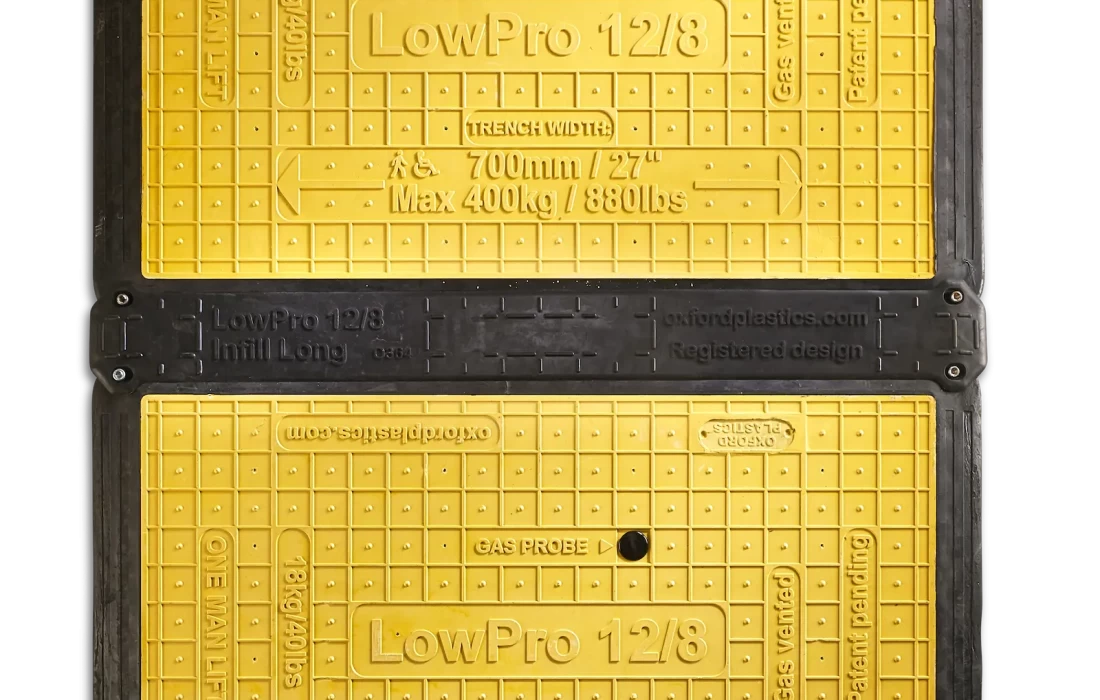

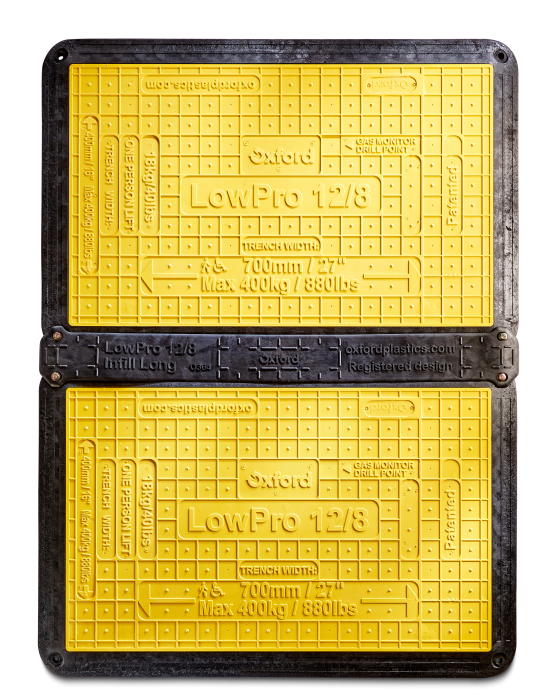

The LowPro 12/8 is a modular system of linking pedestrian trench covers, comprising the trench cover and 2 sizes of infill strips.
Features & Benefits
Save Time
No need to bolt into place in most applications—black rubber edges grip the asphalt
Durable
LowPro edges protect the trench cover from rough handling on site
Flexible

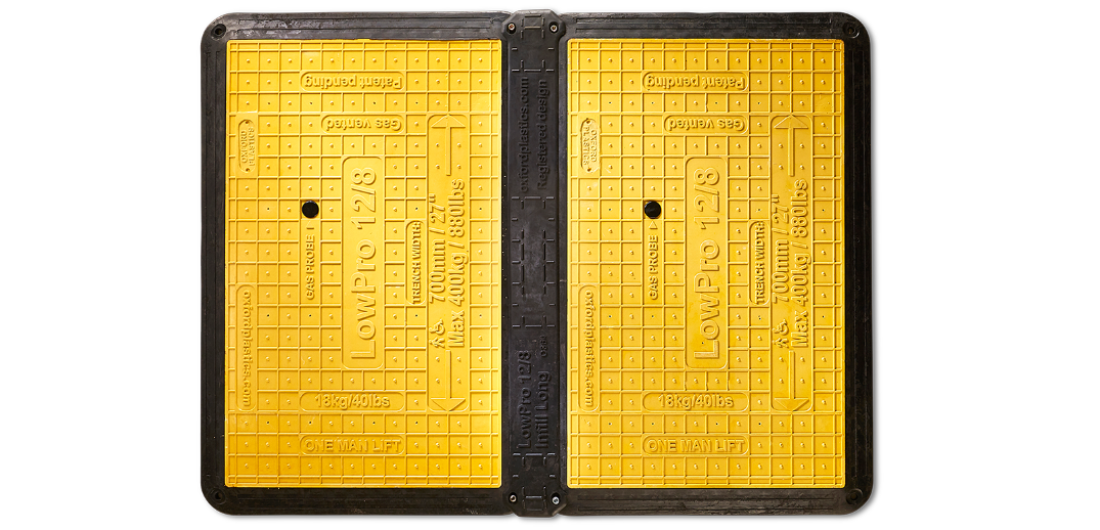

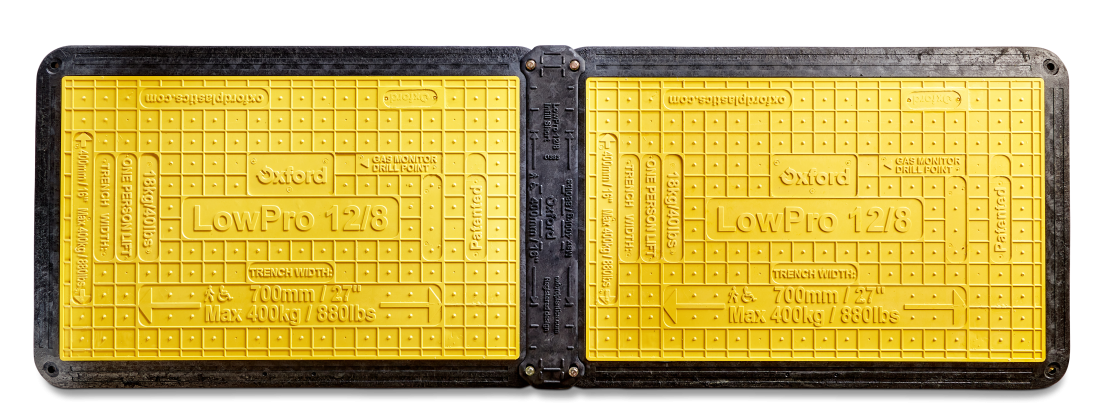

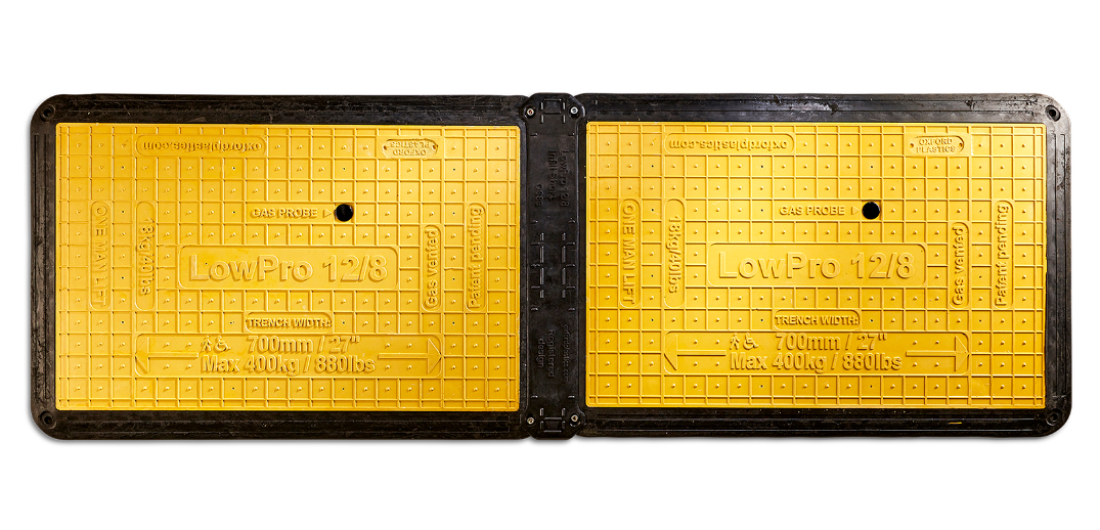

Cover any length of trench by connecting LowPros together with long or short infill strips
Easy to Use
Instructions for use are molded into the anti-slip surface
Anti-Slip
Anti-slip trench cover with grips molded into the surface
Corporate Branding
Available with corporate logo molded into the trench cover and in bespoke colors. MOQs apply
Accessibility

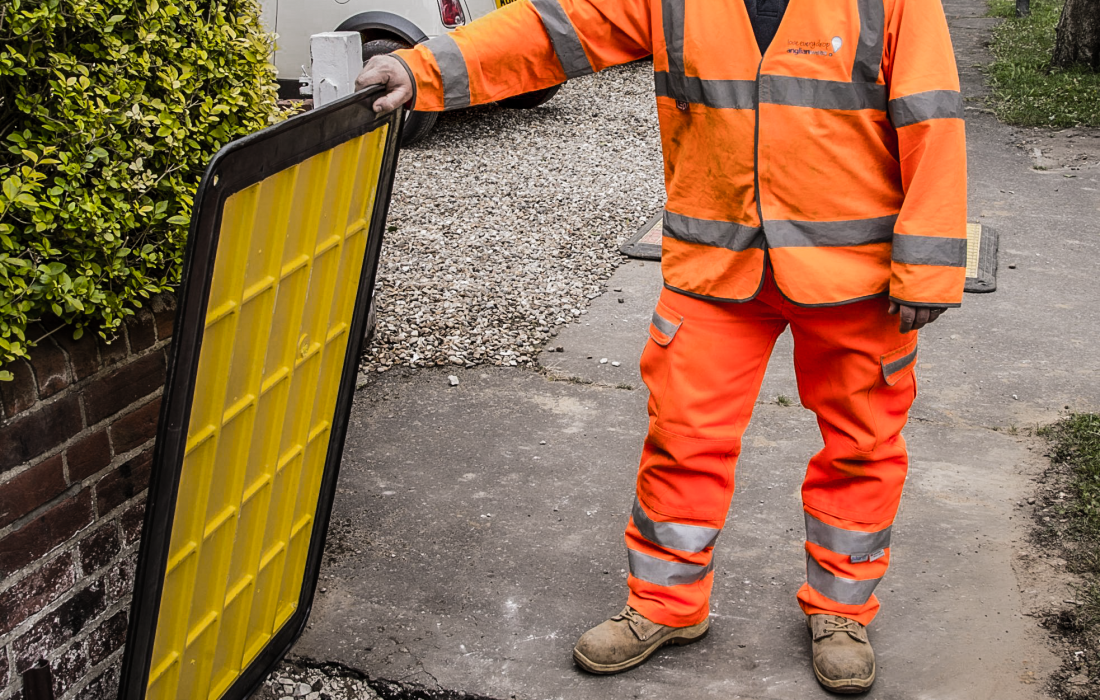

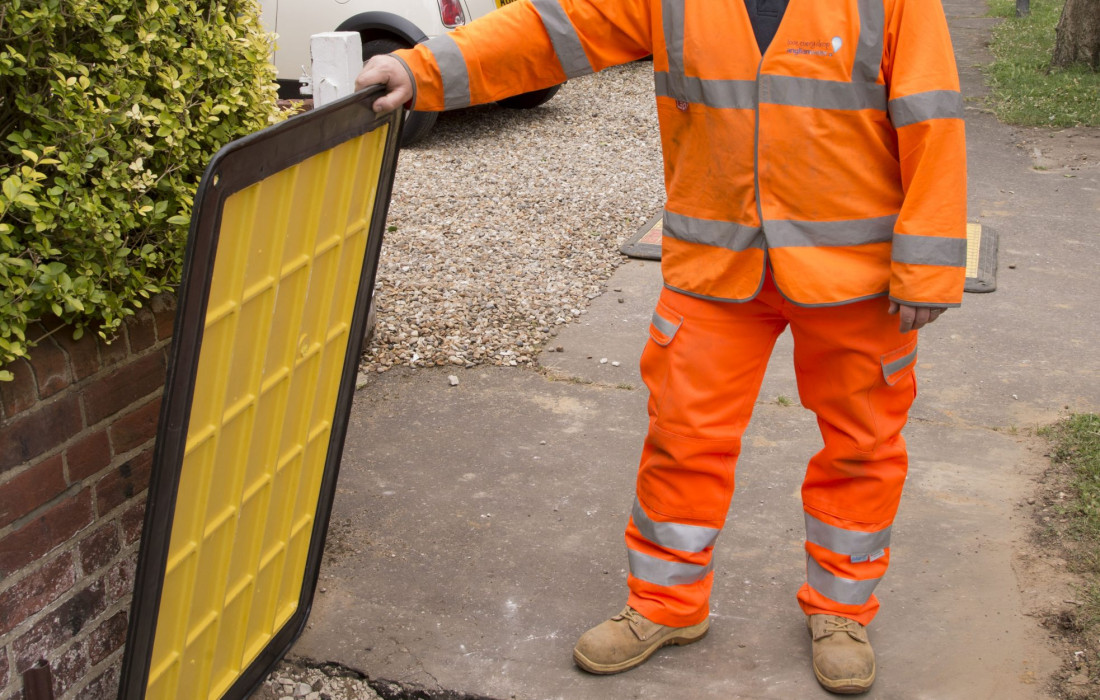

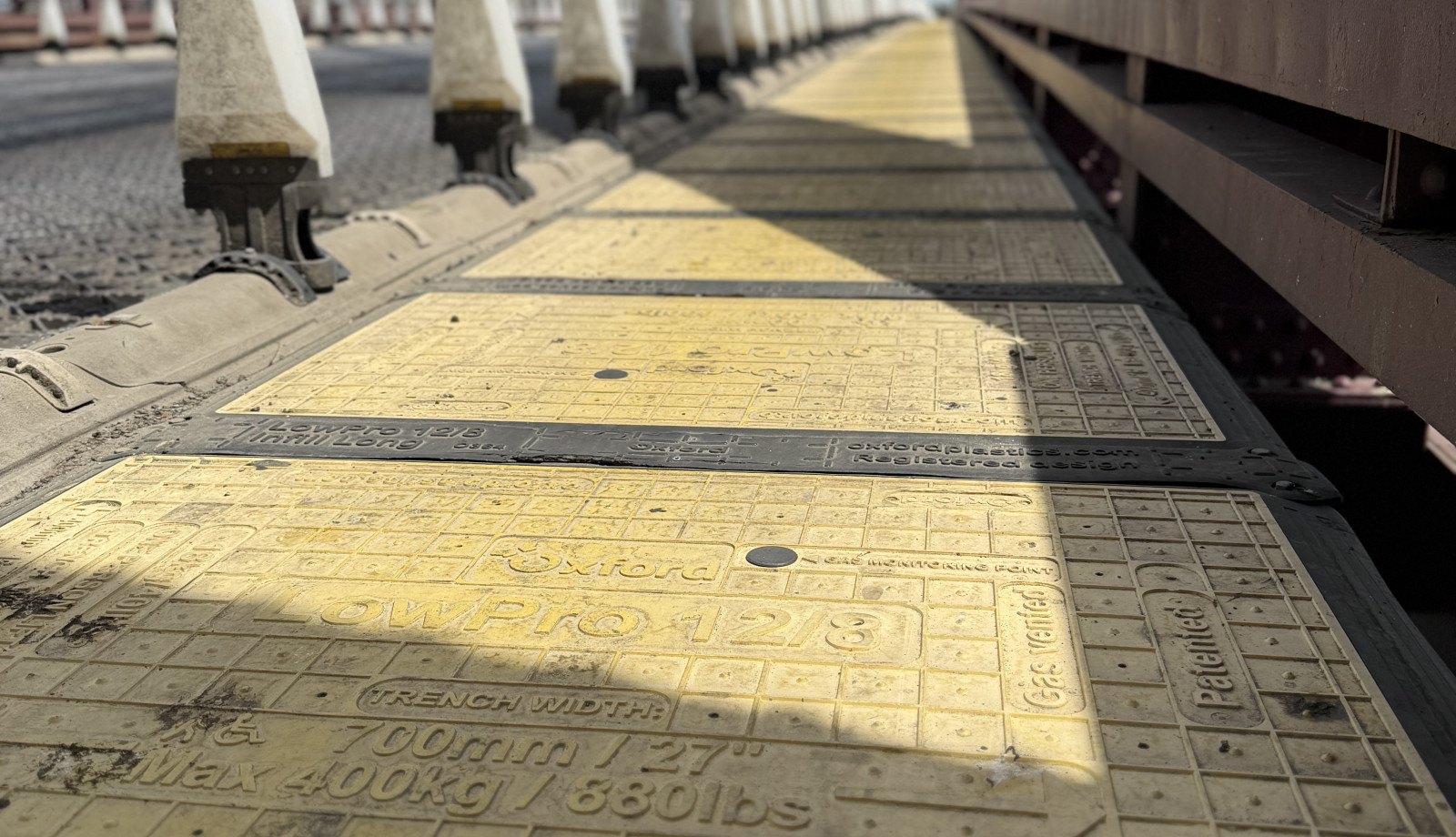

Keep sidewalks open during street works by installing LowPro pedestrian trench covers
Compact
47" x 31" trench cover easily fits in a small work vehicle
LowPro Trench Covers Guide
Everything you need to know about the range of composite LowPro trench covers from Oxford Plastics. Including how they work, installation instructions, and which LowPro to use.
1:59
Easy to Use
- No bolts required in most applications, simply place over the excavation
- No heavy lifting equipment needed—install by hand
- No cold patch or asphalt ramps needed—use the LowPro ramp attachments to create an accessible platform
- Easily fits in the back of a works vehicle
- Instructions for use are molded into the anti-slip surface
Spare Parts
Reduce cost and lower your carbon footprint by maintaining equipment with spare parts.
Downloads
Download the LowPro 12/8 Trench Cover System Product Sheet or Technical Guide for more information on the product. Alternately, read the comprehensive Trench Cover & Road Plate Guide for information on the full range of trench covers available from Oxford Plastics.
-
ProductCategoryType
-
pdf
LowPro 12/8 Trench Cover SystemLowPro Road Plates & Trench CoversProduct Sheet -
pdf
LowPro 12/8 Trench Cover SystemLowPro Road Plates & Trench CoversTechnical Guide
-
zip
LowPro 12/8 Trench Cover SystemLowPro Road Plates & Trench CoversWebsite Asset Pack -
pdf
LowPro 12/8 Trench Cover SystemLowPro Road Plates & Trench CoversLowPro Guide
Product Specifications

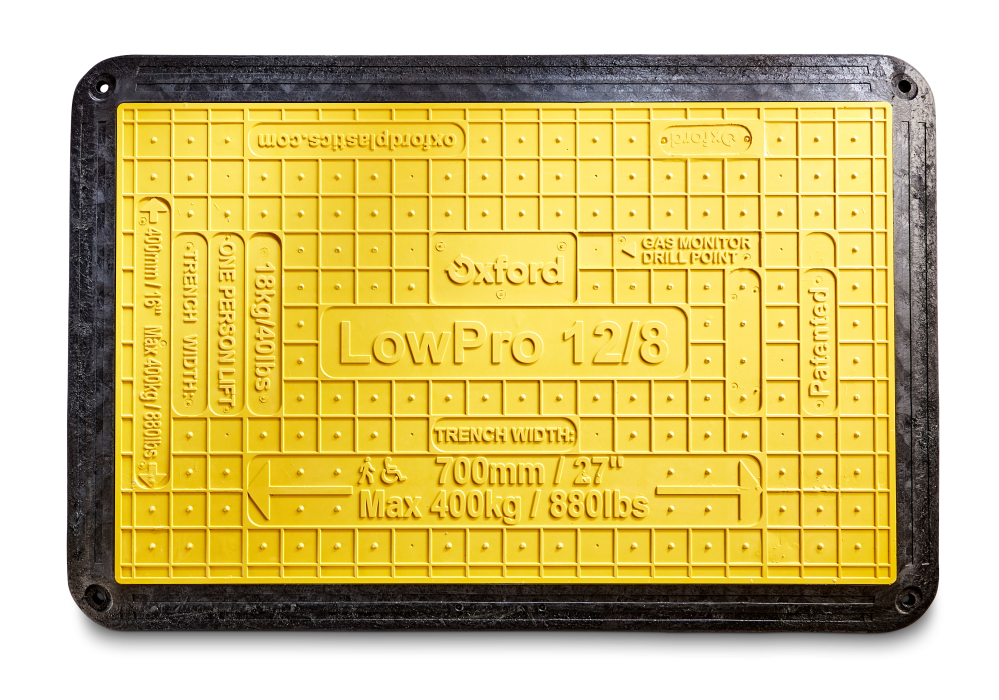

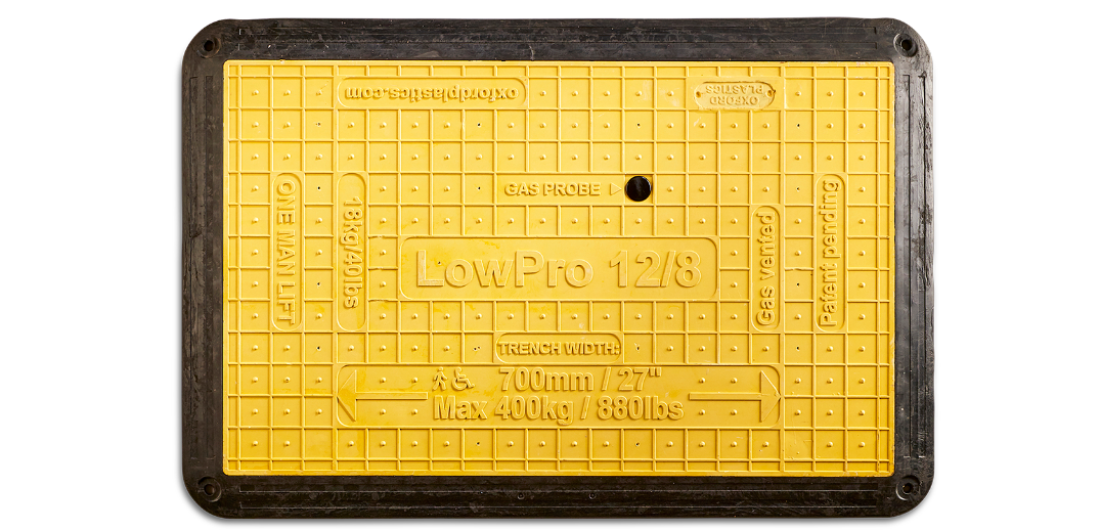

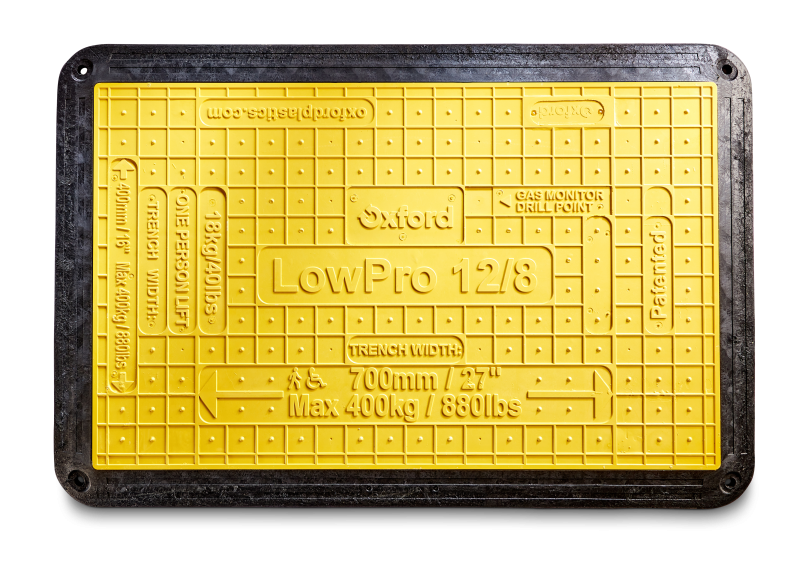

LowPro 12/8 Trench Cover
- Product ref.
- 4356
- Tool code
- O362
- Height
- 1"
- Width
- 31"
- Length
- 47"
- Weight
- 37lb
- Quantity per pallet
- 30
- Full pallet height
- 35"
- Color
- Yellow & Black

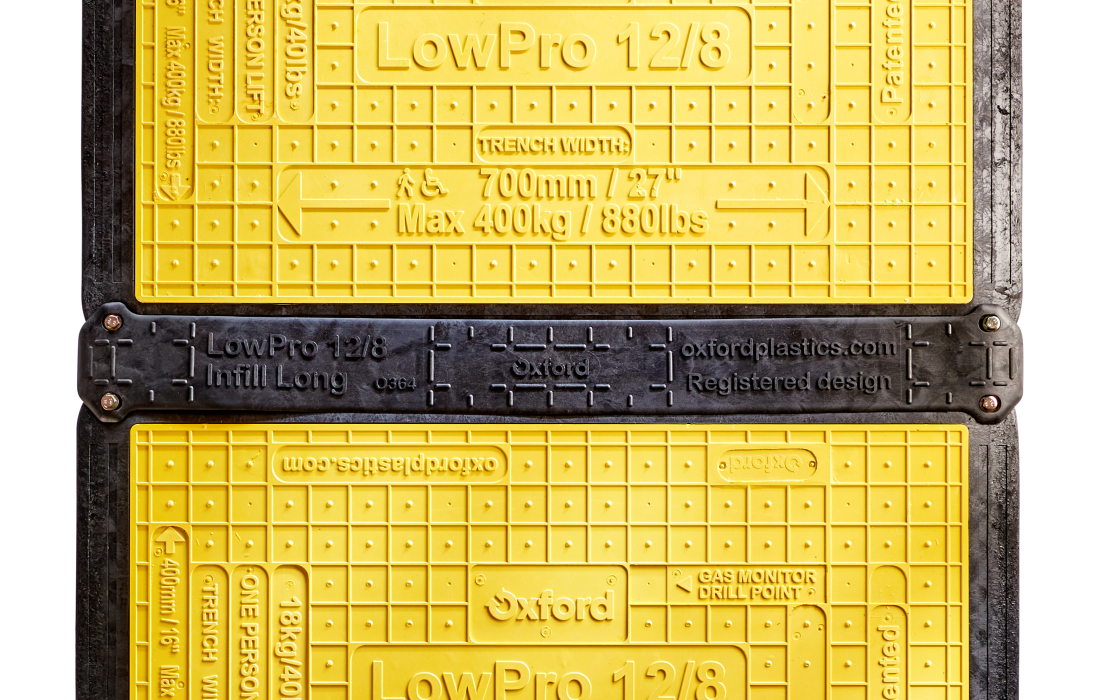

LowPro 12/8 Infill Long
- Product ref.
- 5008
- Tool code
- O364
- Height
- 1"
- Width
- 6"
- Length
- 47"
- Weight
- 4lb
- Quantity per pallet
- 100
- Color
- Black
LowPro 12/8 Infill Short
- Product ref.
- 5318
- Tool code
- O383
- Height
- 1"
- Width
- 6"
- Length
- 31"
- Weight
- 3lb
- Quantity per pallet
- 100
- Color
- Black
