Ramps

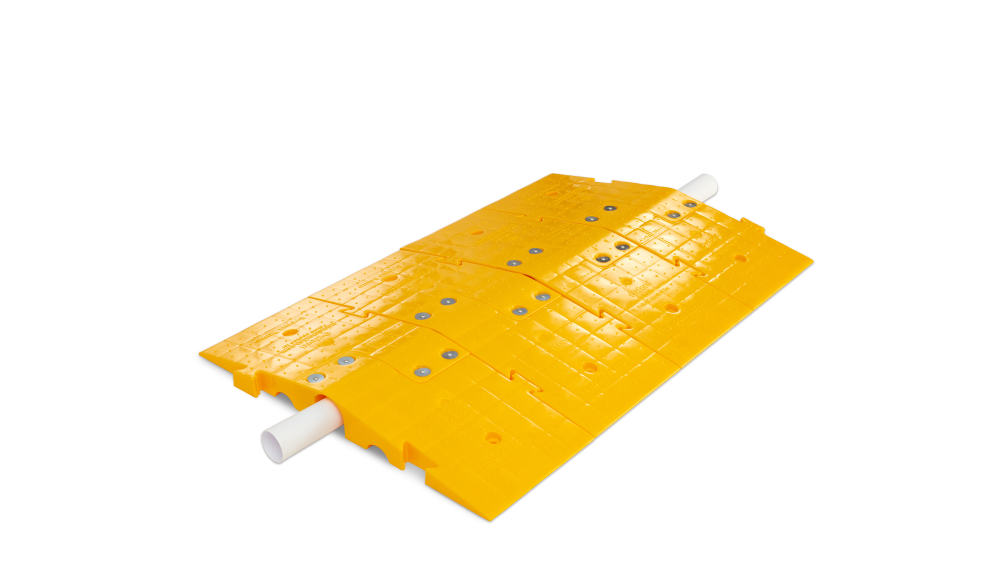

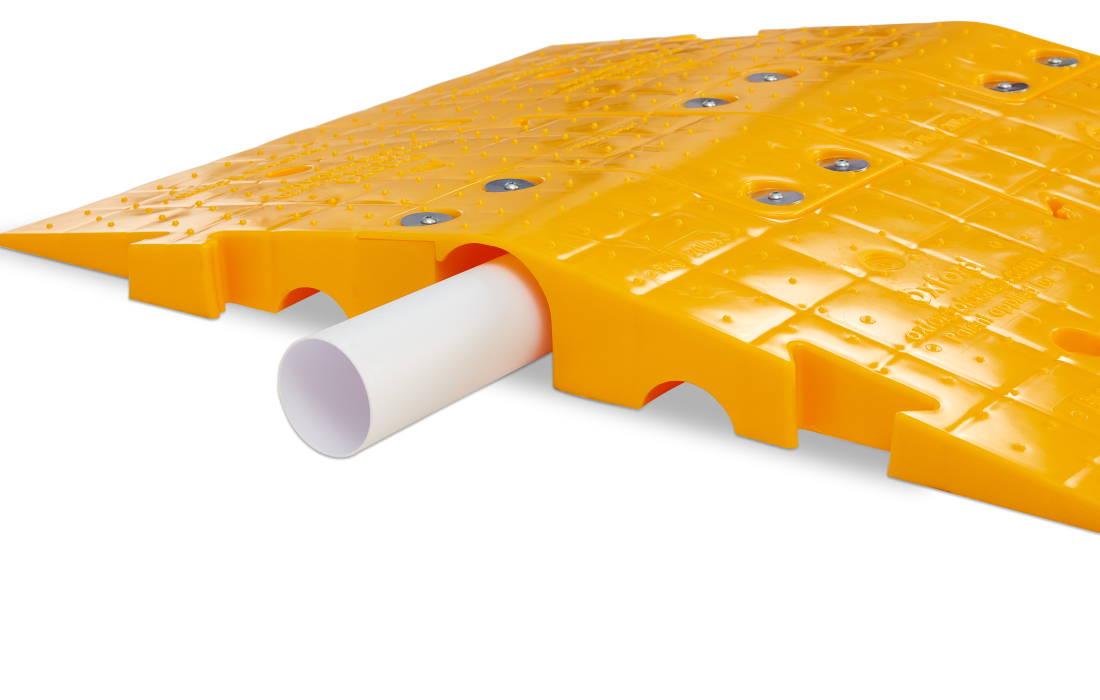

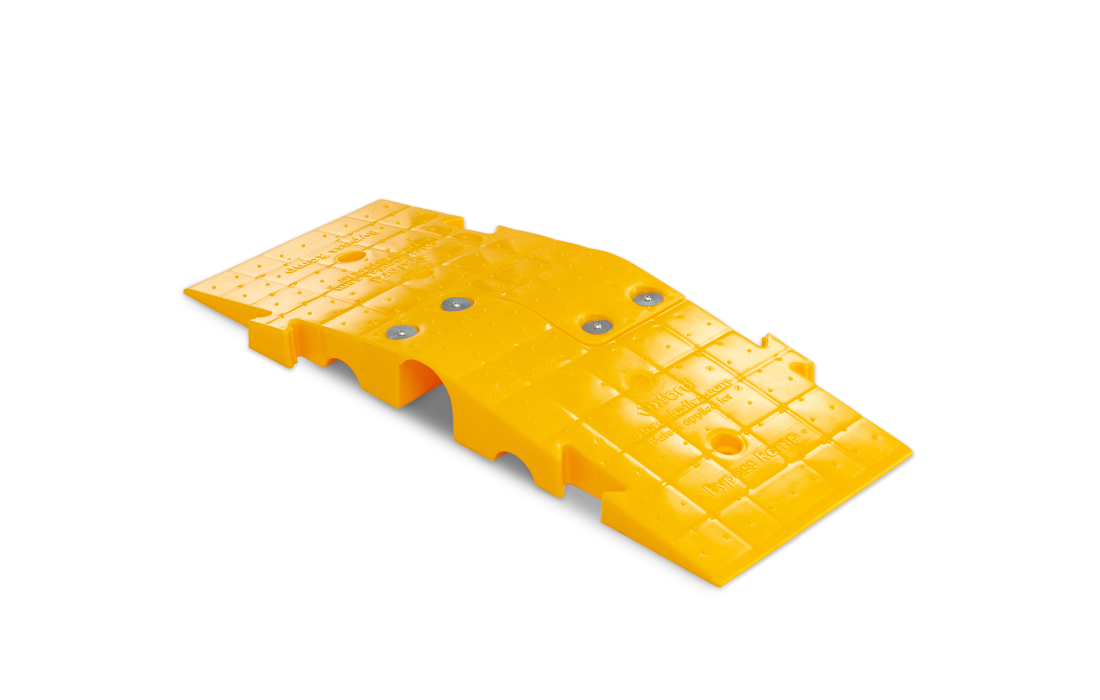

Bypass Ramp

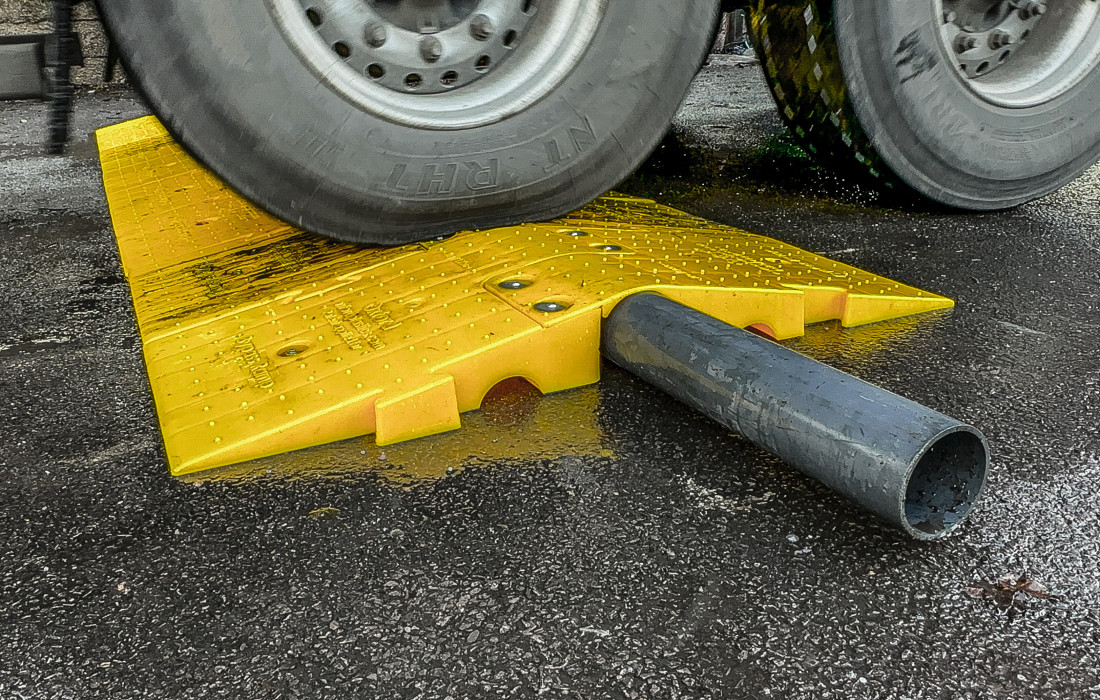

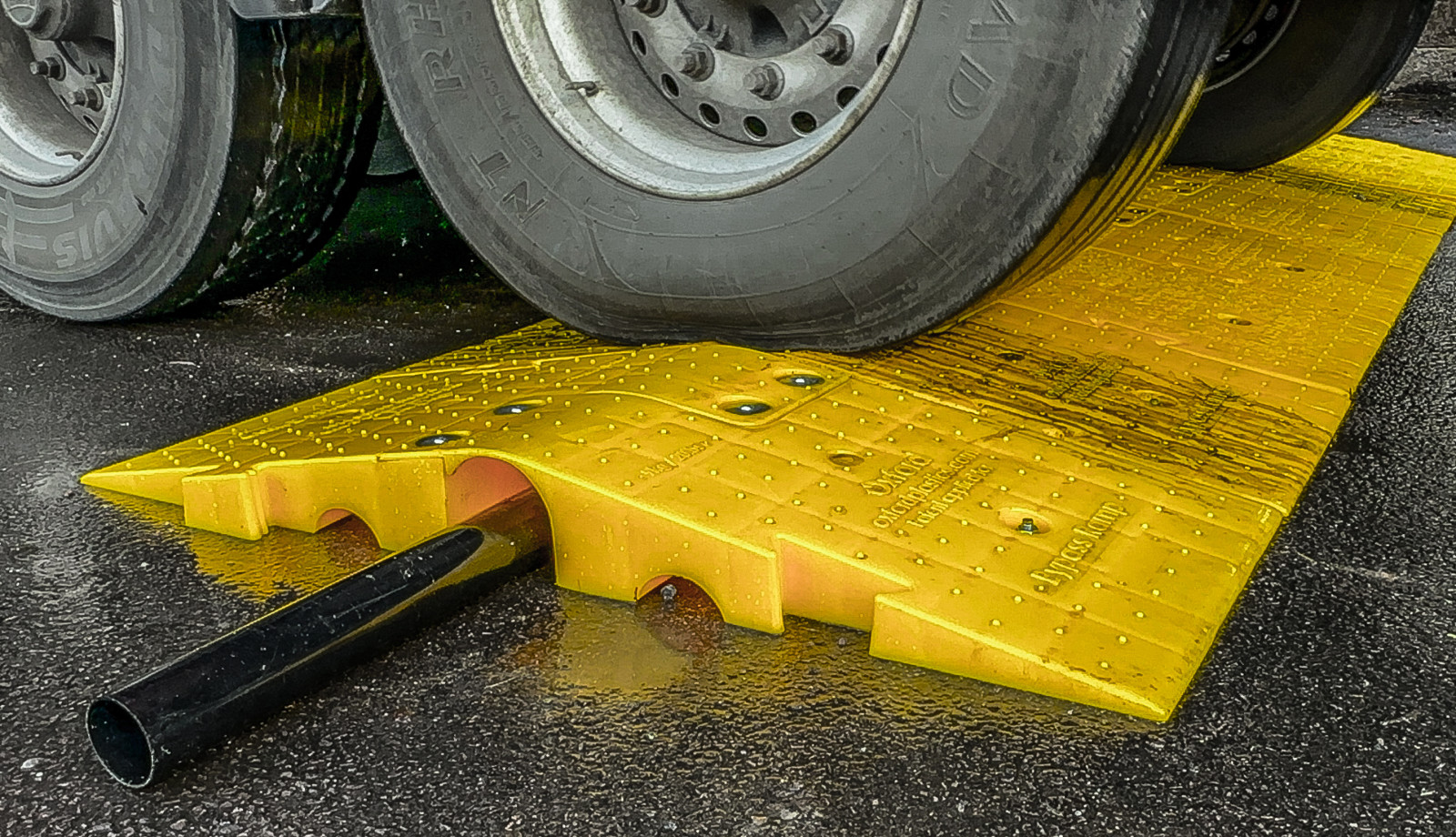

The Bypass Ramp is an access ramp for when pipeline is diverted above ground. Allowing vehicles up to 97000lbs to traverse pipes up to 4.5" dia. Replacing single-use cold patch ramps.
Ramped Access To Homes
- Access over diverted pipes and cables
- Eliminates asphalt cold patch ramps
- Anti-trip & anti-slip covers for utility pipes
- Accepts pipes up to 4.5" dia. which much be load bearing
- Accepts non load-bearing pipes up to 3.5" dia.
Features & Benefits
- Save time & money over asphalt cold patch ramps

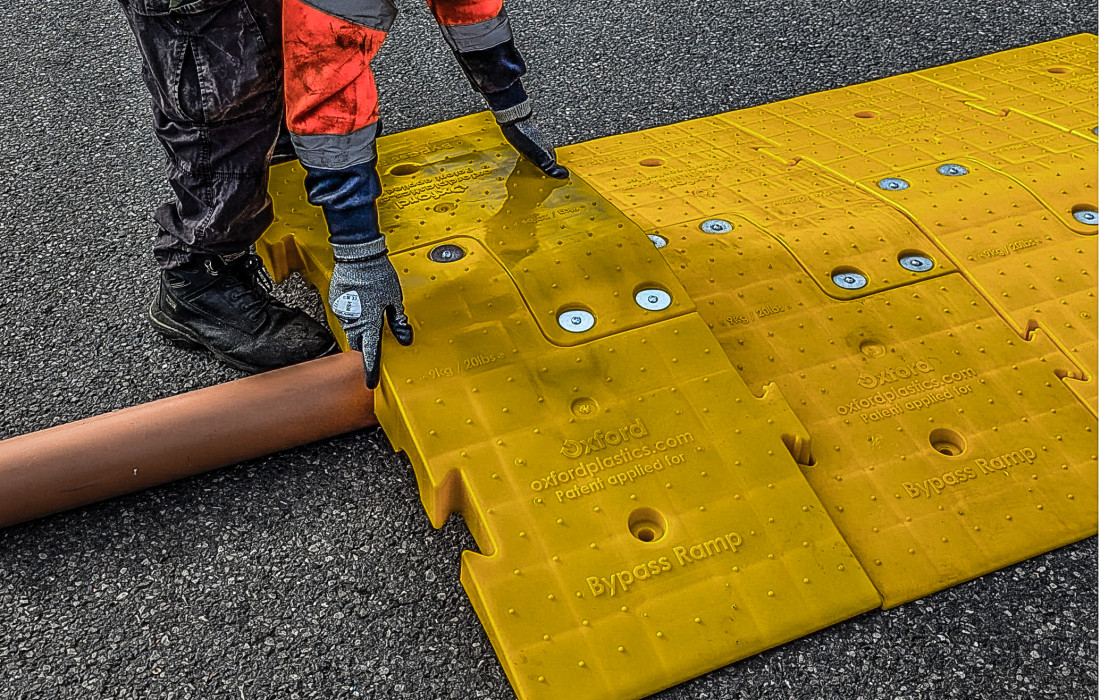

- One person installation - Installed in minutes
- Reusable, Repairable & Recyclable
Downloads
Our access ramps are essential for maintaining accessibility, commonly used to provide access for vehicles and pedestrians, replacing asphalt cold patch ramps. Find out more about our access ramps from our helpful downloads, or learn about our ramps range today.
-
ProductCategoryType
-
pdf
Bypass RampRampsProduct Sheet -
pdf
Bypass RampRampsTechnical Guide
-
zip
Bypass RampRampsWebsite Asset Pack
Product Specifications
Bypass Ramp
- Product ref.
- 5949
- Tool code
- O920
- Height (Inches)
- 5"
- Width (Inches)
- 18"
- Length (Inches)
- 50"
- Weight (lbs)
- 21lbs
- Quantity per pallet
- 25
- Colour
- Yellow
