LowPro 15/10 Trench Cover System

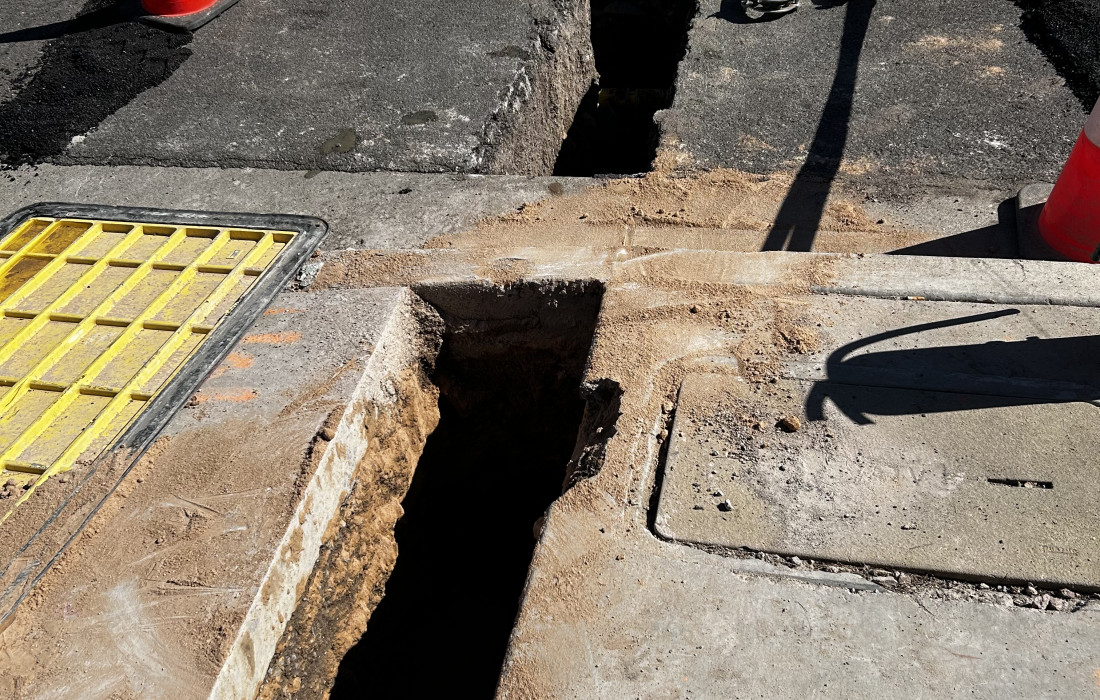

Lightweight, composite trench cover for pedestrians and 7700lbs vehicles over a 36" excavation. Alternative to steel plates.
System Components
The LowPro 15/10 is a modular system of linking trench covers, comprising the trench cover, infill strips, and ramps.
LowPro Trench Covers Guide
Everything you need to know about the range of composite LowPro trench covers from Oxford Plastics. Including how they work, installation instructions, and which LowPro to use.
1:59
Features & Benefits
Save Money
Save on the cost of a crane and other expensive lifting machinery with hand-liftable trench covers
Save Time
No need to bolt into place in most applications—black rubber edges grip the asphalt
Durable
LowPro edges protect the trench cover from rough handling on site
Flexible
Cover any length of trench by connecting LowPros together with long or short infill strips & ramps
ADA compliant
Ramp attachments in long, short, and corner sizes create a smooth 1:12 gradient for vehicles and pedestrians
Easy to Use
Instructions for use are molded into the anti-slip surface
Anti-Slip
Hard-wearing anti-slip surface molded into the product
Corporate Branding
Available with corporate logo molded into the trench cover and in bespoke colors. MOQs apply
Easy to Use

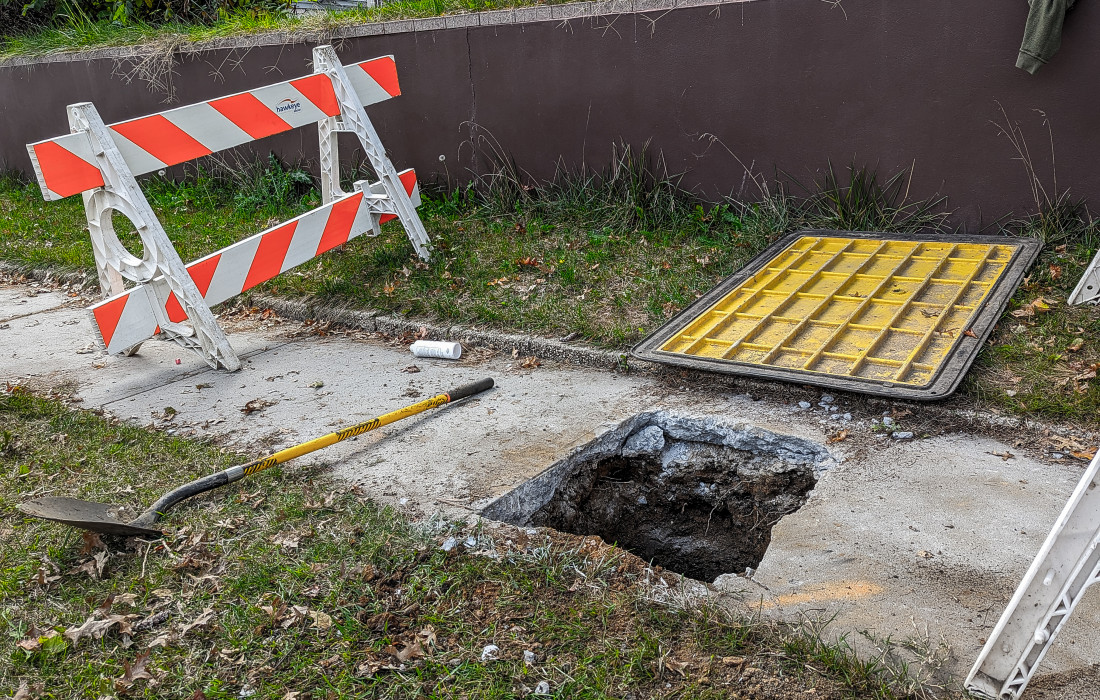

- No bolts required in most applications, simply place over the excavation

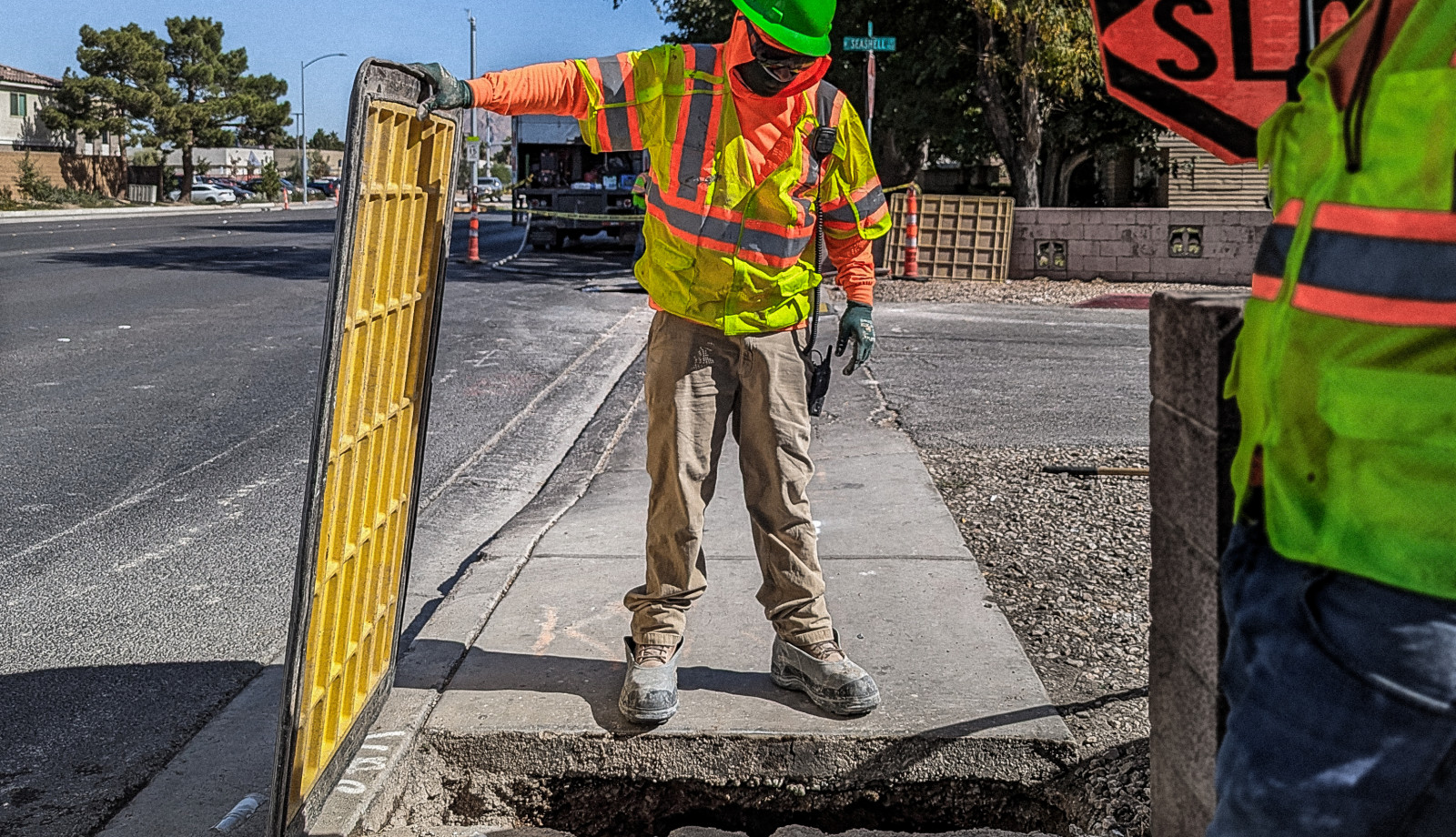

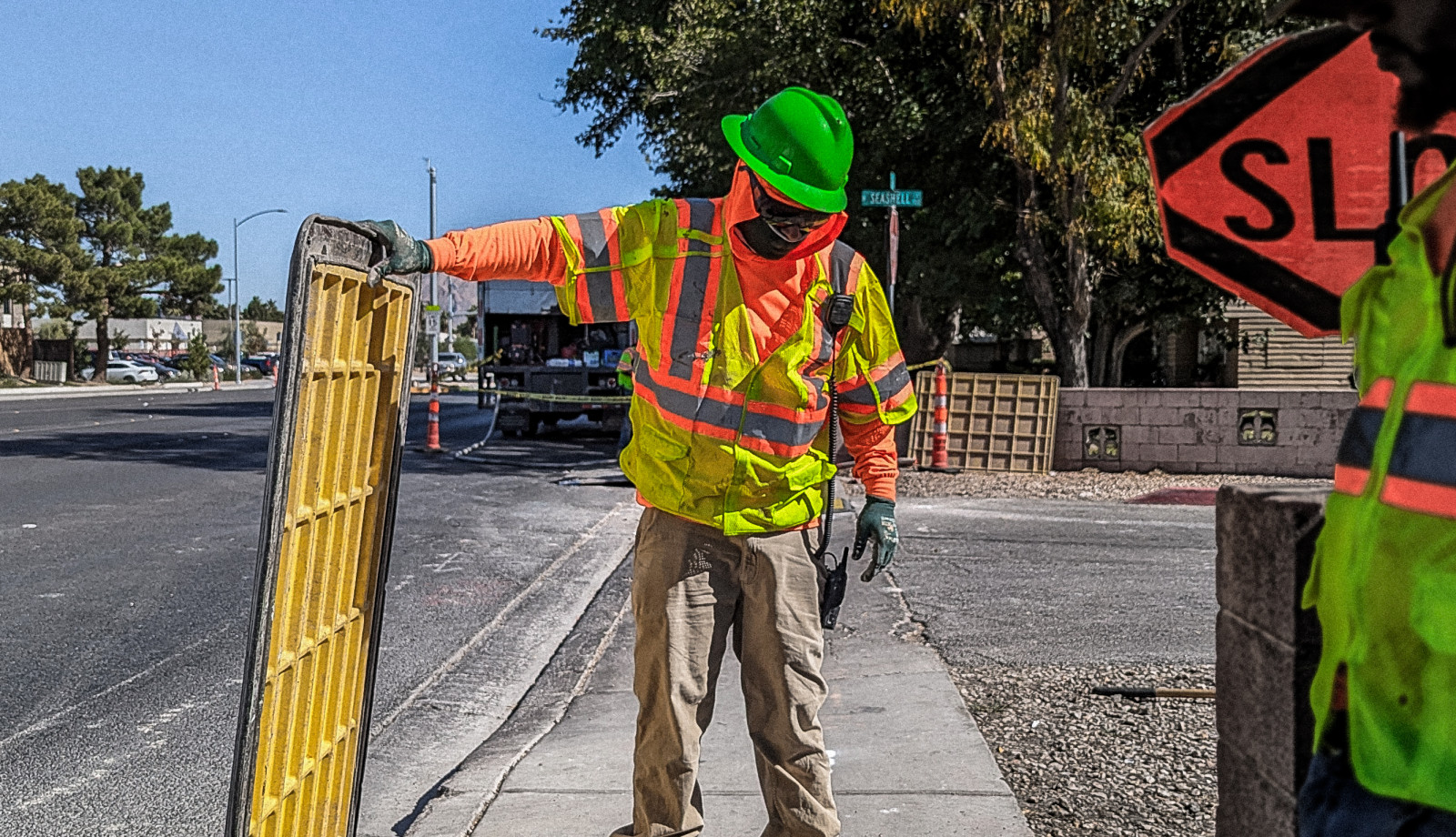

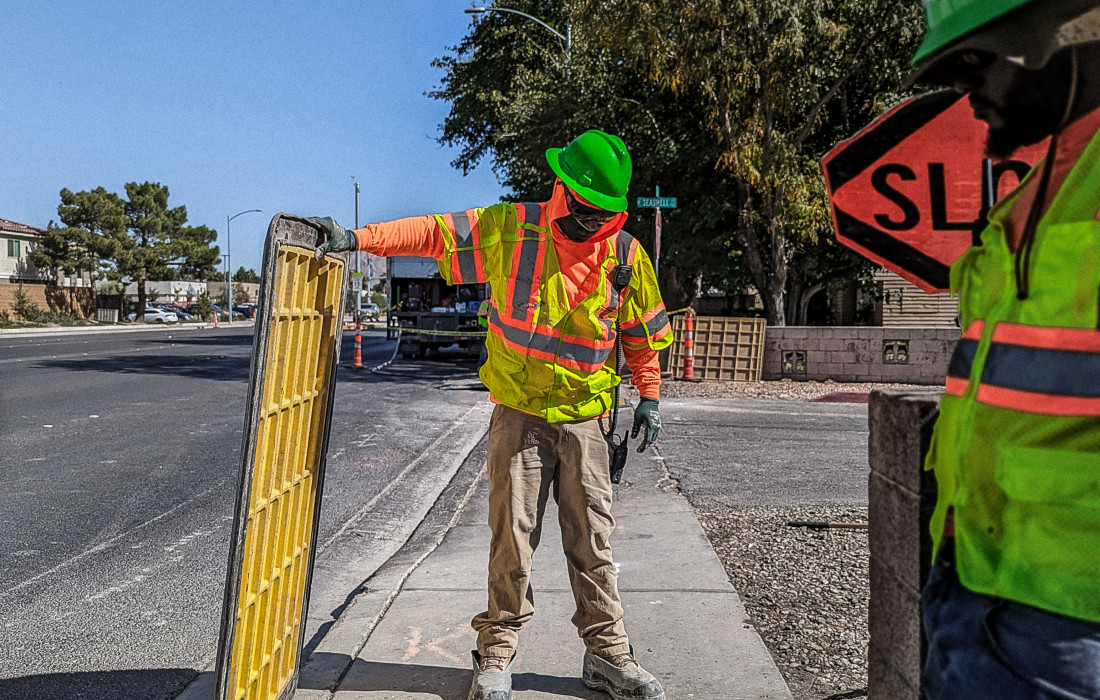

- No heavy lifting equipment needed—install with just 2 people
- No cold patch or asphalt ramps needed—use the LowPro ramp attachments to create an accessible platform
- Easily fits in the back of a work vehicle
- Instructions for use are molded into the anti-slip surface
Accessibility
Infill strips
Connect boards together and prevent drifting once installed

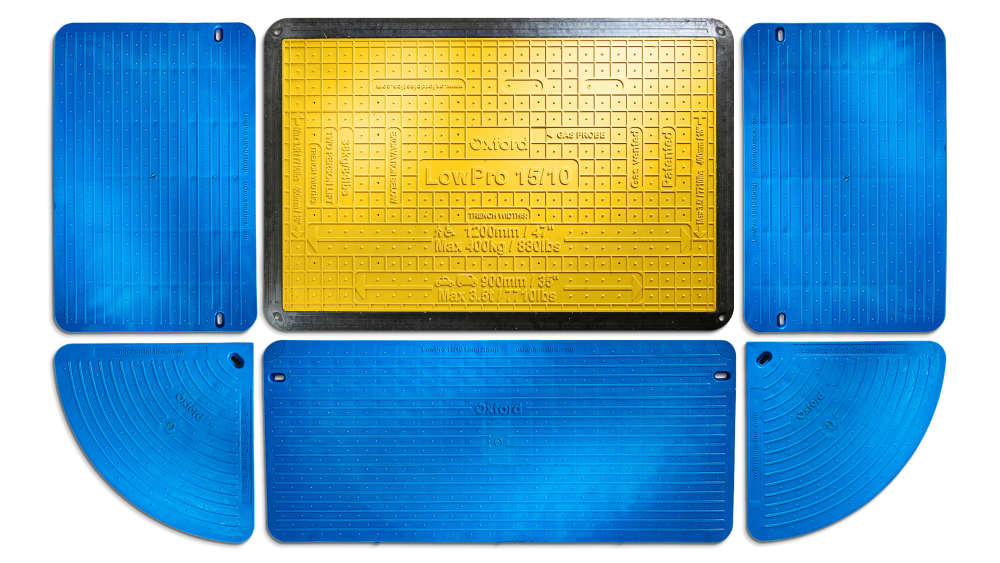

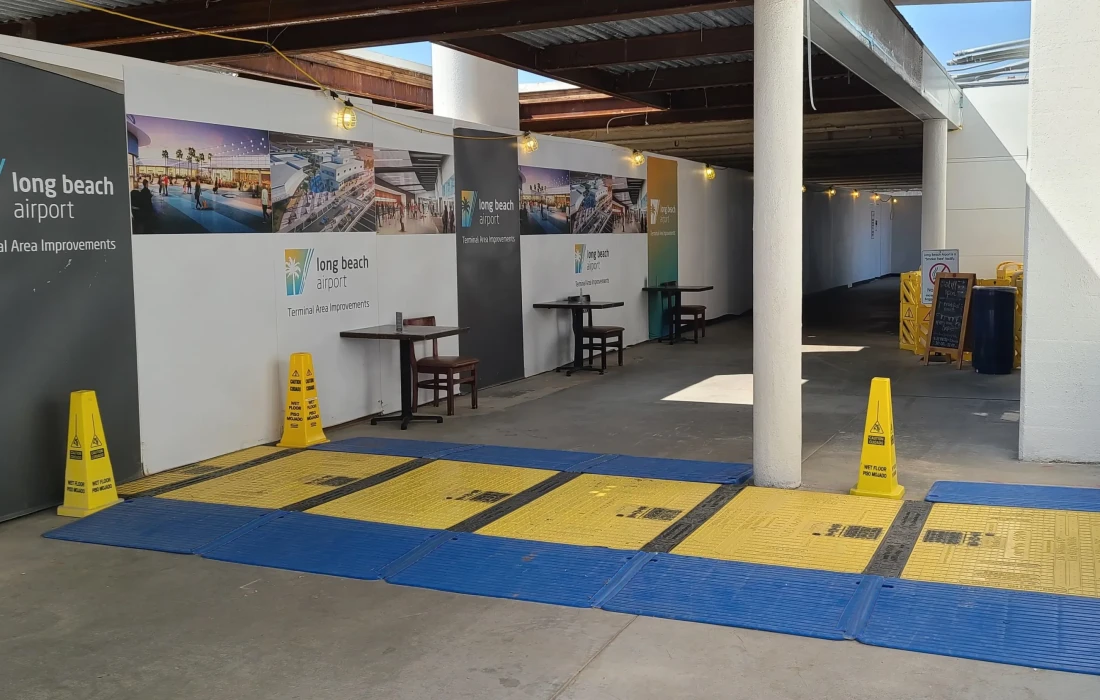

1:12 Gradient Ramps
Create an accessible gradient for cars, bicycles, wheelchairs, and strollers

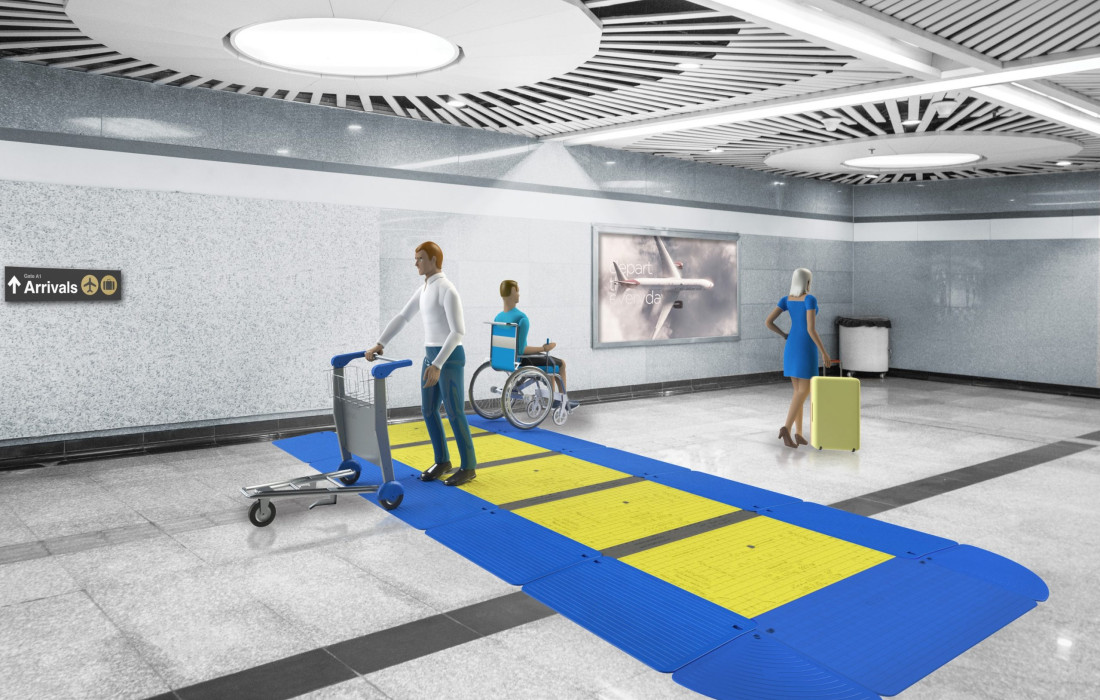

High Foot Traffic

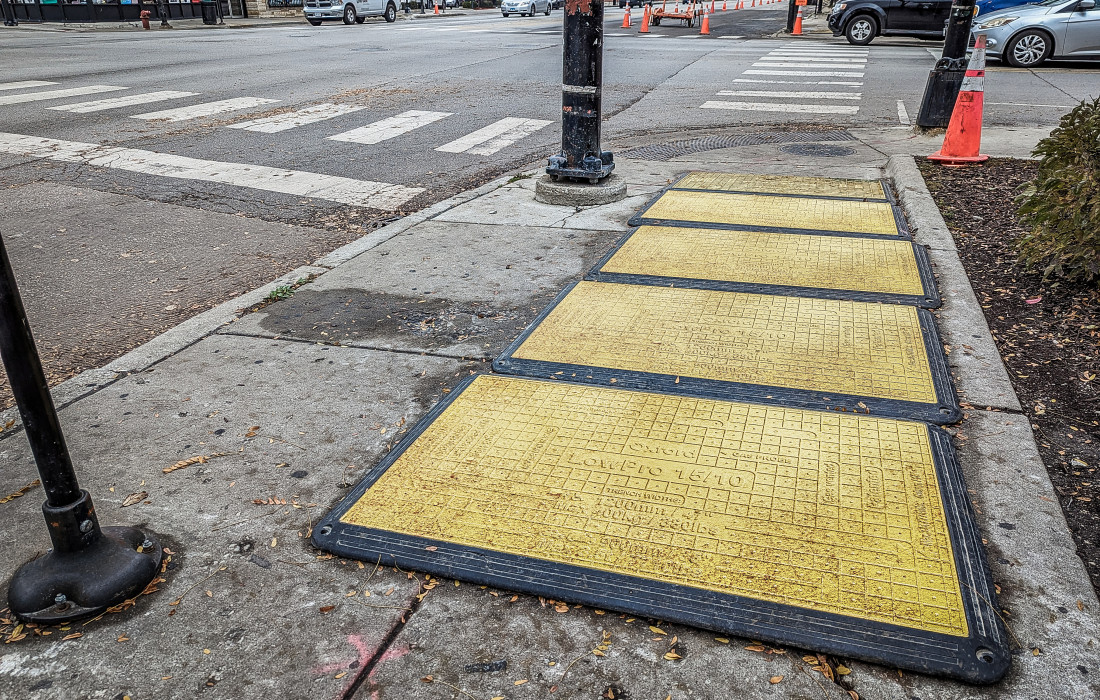

Use the full kit of attachments in public-facing spaces like airports and travel hubs, sidewalks, street works, and in facilities management
Anti-Slip
LowPro edges grip the ground underneath for added stability, and the surface is anti-slip in all weather conditions
Downloads
Find out more with our comprehensive guides on the LowPro 15/10 Trench Cover and the complete Trench Cover & Road Plates Guide, or visit our Road Plates & Trench Covers page for more information.
-
ProductCategoryType
-
pdf
LowPro 15/10 Trench Cover SystemLowPro Road Plates & Trench CoversProduct Sheet -
pdf
LowPro 15/10 Trench Cover SystemLowPro Road Plates & Trench CoversTechnical Guide
-
zip
LowPro 15/10 Trench Cover SystemLowPro Road Plates & Trench CoversWebsite Asset Pack -
pdf
LowPro 15/10 Trench Cover SystemLowPro Road Plates & Trench CoversLowPro Guide
Spare Parts
Reduce cost and lower your carbon footprint by maintaining equipment with spare parts.
Product Specifications

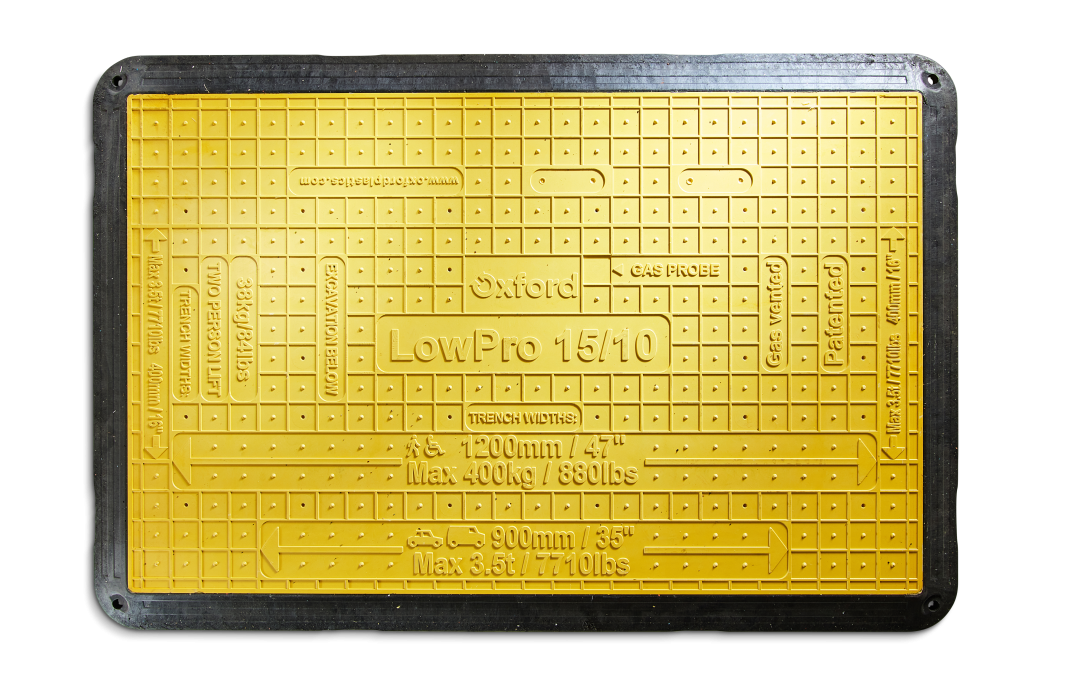

LowPro 15/10 Driveway Board
- Product ref.
- 4132
- Tool code
- O815
- Height
- 1"
- Width
- 39"
- Length
- 59"
- Weight
- 84lb
- Quantity per pallet
- 20
- Full pallet height
- 34"
- Color
- Black & Yellow

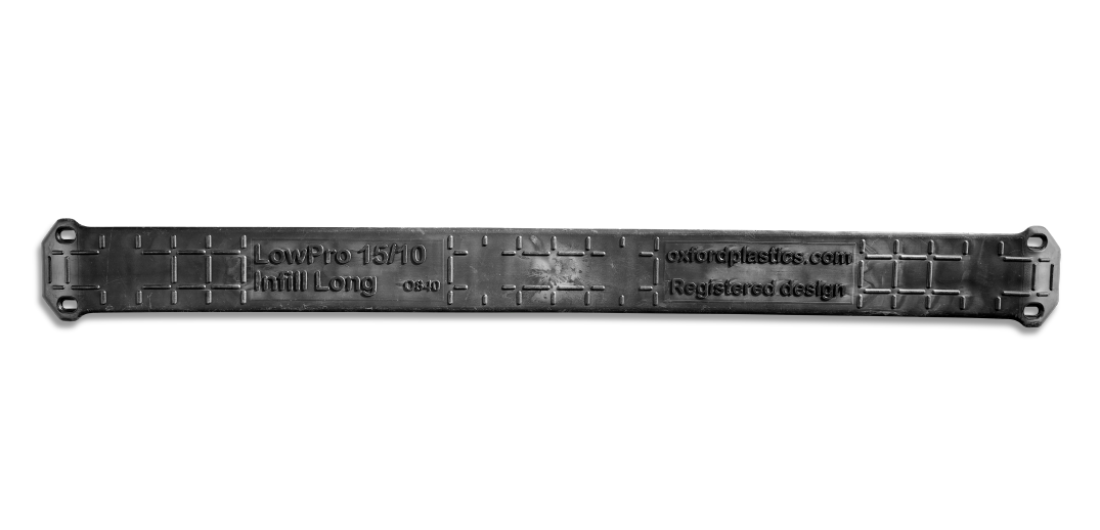

LowPro 15/10 Infill Long Side
- Product ref.
- 4998
- Tool code
- O840
- Height
- 1"
- Width
- 6"
- Length
- 59"
- Weight
- 5lb
- Quantity per pallet
- 100
- Color
- Black

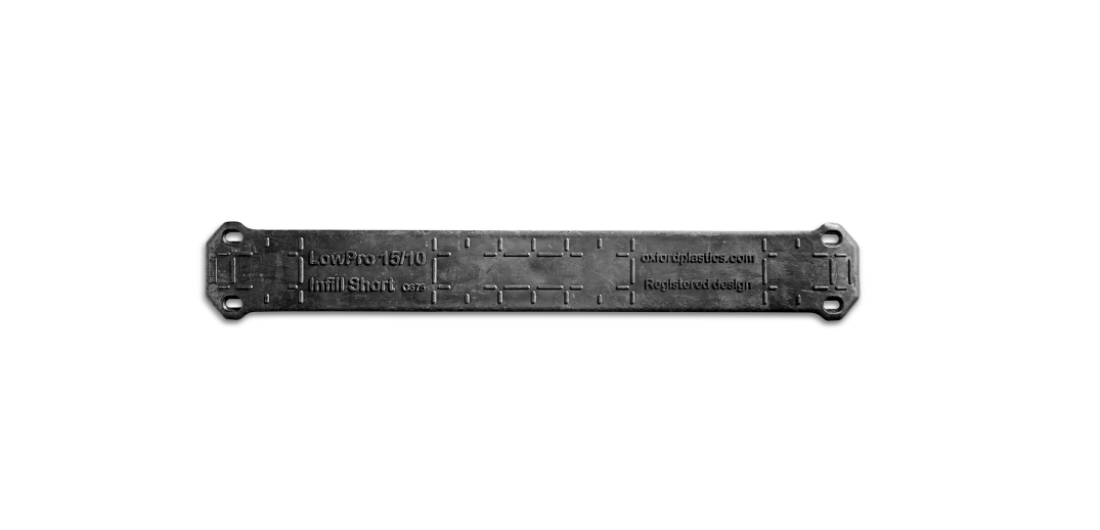

LowPro 15/10 Infill Short Side
- Product ref.
- 5006
- Tool code
- O375
- Height
- 1"
- Width
- 6"
- Length
- 39"
- Weight
- 4lb
- Quantity per pallet
- 100
- Color
- Black
LowPro 15/10 Ramp Corner
- Product ref.
- 5466
- Tool code
- O775
- Height
- 2"
- Width
- 23"
- Length
- 23"
- Weight
- 5lb
- Quantity per pallet
- 100
- Color
- Blue
LowPro 15/10 Ramp Short
- Product ref.
- 5309
- Tool code
- O798
- Height
- 2"
- Width
- 25"
- Length
- 39"
- Weight
- 19lb
- Quantity per pallet
- 50
- Color
- Blue
LowPro 15/10 Ramp Long
- Product ref.
- 5465
- Tool code
- O774
- Height
- 2"
- Width
- 25"
- Length
- 59"
- Weight
- 20lb
- Quantity per pallet
- 50
- Color
- Blue
